Expandable Braided Sleeving For EV

Model: CTES

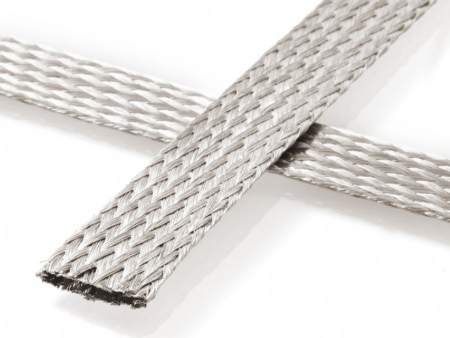

Tinned Copper Expandable Sleeving EMI

The product is widely used to protect new energy automotive wire harnesses and electronic appliances for electromagnetic shielding, preventing from electromagnetic interference.

Powered by Froala Editor

FEATURES

• Oil and chemical resistance
• Cutting tools: scissors
• Storage: 2 bags of drying agent for every spool, then sealed with PE film for protection
• Certificate: RoHS

Powered by Froala Editor

TYPICAL APPLICATIONS

Material data: Tinned copper wire
Working temperature: -60˚C~+200˚C
Melting point: 1084˚C
Standard color: Tin plating color

Powered by Froala Editor

TECHNICAL DATA

Property
Test method
Test result
Shielding propertyGB/T 30142-201330MHZ-3GHZ frequency band shielding efficiency≥75dB

Powered by Froala Editor

Powered by Froala Editor

DIMENSIONS

Part no.
Expandable range(mm)
Structure
(No. of lines*No of Strands/ diameter of monofilament)
Reference weight
(g/m)
Min.(I)Max.(O)
CTES-0020154*16/0.12
7.2
CTES-0040
2106*24/0.1215.6
CTES-0050
31210*24/0.1225.6
CTES-0060
51412*24/0.1231.2
CTES-0080
7206*48/0.1232
CTES-0100
9228*48/0.1243
CTES-0140
102510*48/0.1285
CTES-0160
122712*48/0.1295
CTES-0220
143020*48/0.12171
CTES-0250
163325*48/0.12204
CTES-0300
203830*48/0.12245
