Marking Heat Shrink Tube
SAMS-PVDF-225 high temperature heat shrink marker sleeve is a type of heat shrink identification sleeves designed for wire and cable identification in applications with high temperature environments or requiring extreme resistance to fuels, lubricants and cleaning solvents. The SAMS-PVDF-225 high temperature heat shrink marker sleeve is printable Using thermal transfer printer, and the identification marks are durable and can remain legible even when exposed to abrasion, aggressive cleaning solvents and industrial fluids.
Powered by Froala Editor
FEATURES
• Shrink ratio: 2:1
• Printing: single sided printing or double sided printing

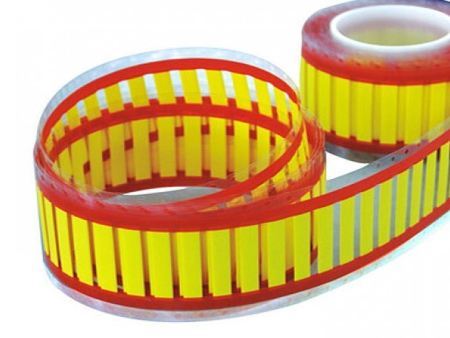

• Supplied format: ladder-style or continuous sleeve
• Recommended printer: thermal transfer printer
• Recommended ribbon: N85 resin ribbon, black, 100mm(width)×300m(length)
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Fabricated from irradiated, thermally stabilized, flame retarded, modified polyolefin compound without halogens or cadmium in formulation
Operating temperature: -55˚C~+225˚C
Minimum recovery temperature: +135˚C
Maximum storage temperature: +50˚C
Standard: AMS-DTL-23053/18,SAE-AS 81531,MIL-STD-202F/Method 215J, UL224 and RoHS.
Standard color: White, yellow, other colors are available upon request
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Typical performance |
| Tensile strength (MPa) | 24.3 | 31.3 |
| Tensile strength after aging (MPa) | 200 | 330 |
| Low temperature flexibility 4 hours at -55±1˚C | No crack | Pass (no cracking) |
| Heat shock 4 hours at 275±3℃ | No cracks, flowing or dripping | Pass (no cracking, legible after 100 rubs) |
| Dielectric strength (KV/m) | 15.7 | 43.0 |
| Volume resistivity (Ω·cm) | 1.0×1012minimum | 9.1x1012 |
| Corrosive effect | No corrosive | Pass |
| Flammability | VW-1 | Pass |
| Heat aging 168 hours at 225±2℃ | No cracking, flowing or dripping | Pass (no cracking, legible after 100 rubs) |
| Print performance | SAE-AS 81531 | Pass (legible after 100 rubs) |
| Strokes | MIL-STD-202F | Pass |
Powered by Froala Editor
DIMENSIONS
| Part no. | As supplied(mm) | After recovery(mm) | Packing quantity (pcs/box) | |
| ID(D) | ID(d) | Single wall thickness | ||
| SAMS-PVDF-225-2X-0024 | ≥2.4 | ≤1.2 | 0.38±0.08 | 2500 |
| SAMS-PVDF-225-2X-0032 | ≥3.2 | ≤1.6 | 0.38±0.08 | 2000 |
| SAMS-PVDF-225-2X-0048 | ≥4.8 | ≤2.4 | 0.38±0.08 | 2000 |
| SAMS-PVDF-225-2X-0064 | ≥6.4 | ≤3.2 | 0.38±0.08 | 2000 |
| SAMS-PVDF-225-2X-0095 | ≥9.5 | ≤4.8 | 0.38±0.08 | 1000 |
| SAMS-PVDF-225-2X-0127 | ≥12.7 | ≤6.4 | 0.38±0.08 | 1000 |
| SAMS-PVDF-225-2X-0190 | ≥19.0 | ≤9.5 | 0.38±0.08 | 500 |
| SAMS-PVDF-225-2X-0250 | ≥25.0 | ≤12.7 | 0.43±0.10 | 500 |
| SAMS-PVDF-225-2X-0380 | ≥38.0 | ≤19.0 | 0.43±0.10 | 500 |
| SAMS-PVDF-225-2X-0510 | ≥51.0 | ≤25.4 | 0.43±0.10 | 250 |
Part Numbering System
