Aluminum Foil Corrugated Flexible Conduit
Request a Quote
product thumbnail

Hose Protective sleeve

Model: GAFW3610

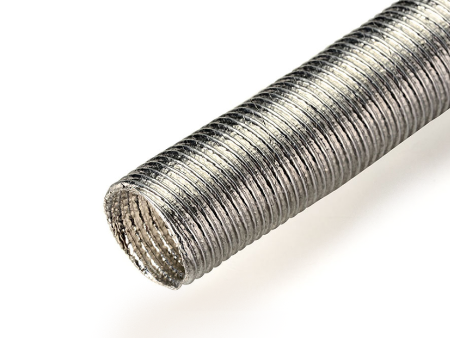

Aluminum Foil Corrugated Flexible Conduit

It has superior thermal insulation, against radiant heat and high temperature resistance performance. oil and corrosion resistance. commonly used in protecting various wire cables, rubber hose, oil tube etc.

Powered by Froala Editor

Powered by Froala Editor

FEATURES

• Corrugation number pet meter ≥400 pcs
• Expansion amount: ≥20%
• Cutting tools: cutting machine, scissors
• Certificate: RoHS

Powered by Froala Editor

TYPICAL APPLICATIONS

Material data: Aluminum foil + Fiberglass
Operating temperature: -40℃ ~ + 250℃
Standard color: Natural color

Powered by Froala Editor

TECHNICAL DATA

Property
Test method
Result
Working temperature
/-40℃~+250℃
Thermal insulation
SEA J2302Heat insulation performance: ≥80℃
Oil resistance
GMW 15608No lamination and degradation
High temperature aging
GMW15608 (72H/250℃)No delamination
Low temperature flexibility
GMW15608 (-40℃/24H)
No crack or delamination

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

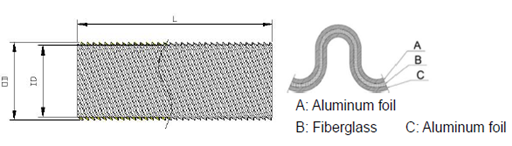

DIMENSIONS

Part no.
ID(mm)
OD(mm)
Packing(m/pcs)
GAFW3610-090
9.0±0.5mm
12.0±0.5mm
1M
GAFW3610-10010.5±0.4mm13.5±0.4mm1M
GAFW3610-110
11.0±0.4mm14.0±0.4mm1M
GAFW3610-120
12.0±0.4mm
15.0±0.4mm1M
GAFW3610-130
13.5±0.4mm16.5±0.4mm
1M
GAFW3610-140
14.5±0.4mm17.5±0.4mm1M
GAFW3610-160
16.5±0.4mm19.5±0.4mm1M
GAFW3610-170
17.5±0.5mm20.5±0.5mm1M
GAFW3610-180
18.5±0.5mm21.5±0.5mm1M
GAFW3610-200
20.5±0.5mm23.5±0.5mm1M
GAFW3610-210
21.5±0.5mm24.5±0.5mm1M
GAFW3610-220
22.5±0.5mm26.5±0.5mm1M
GAFW3610-240
24.5±0.5mm27.5±0.5mm1M
GAFW3610-250
25.5±0.5mm28.5±0.5mm1M
GAFW3610-260
26.5±0.5mm29.5±0.5mm1M
GAFW3610-270
27.5±0.5mm31.0±0.5mm1M
GAFW3610-280
28.5±0.5mm31.5±0.5mm1M
GAFW3610-290
29.5±0.5mm32.5±0.5mm1M
GAFW3610-300
30.5±0.5mm33.5±0.5mm1M
GAFW3610-320
32.5±0.5mm36.0±0.5mm1M
GAFW3610-340
34.0±0.5mm37.0±0.5mm1M
GAFW3610-360
36.5±0.5mm40.5±0.5mm1M
GAFW3610-37037.3±0.5mm41.0±0.5mm1M
GAFW3610-400
40.5±0.5mm44.0±0.5mm1M
