Self-Closing Wrap
Widely used in automotive, automation equipment wiring harness and hose, especially suitable in wire and hose fields which need protection and wear resistance.
Powered by Froala Editor
FEATURES
• Flame retardant
• UV resistance
• Not affected by most chemicals and solvents
• Flexible and excellent abrasion property
• Outstanding acoustical noise suppression
• 25% and more of edge overlap
• Certificate: RoHS
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Polyester
Working temperature: -40˚C~+150˚C
Recommended shrinkage condition: 150℃ ~200 ℃ (tunnel/oven)
Standard color: Black
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Test result |
| Low temperature resistance | -40˚C/ 4h | No crack and degradation |
| Short-term aging | 175˚C/ 240h | No crack and degradation |
| Flammability | FMV SS302 | Conform to Combustion rate <100mm/min |
| Abrasion resistance | ISO6722-1 | Conform to GMW 14327 ≥Grade 4(≥4000 cycles) |
| Oil resistance | GMW 14327 | Pass |
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor

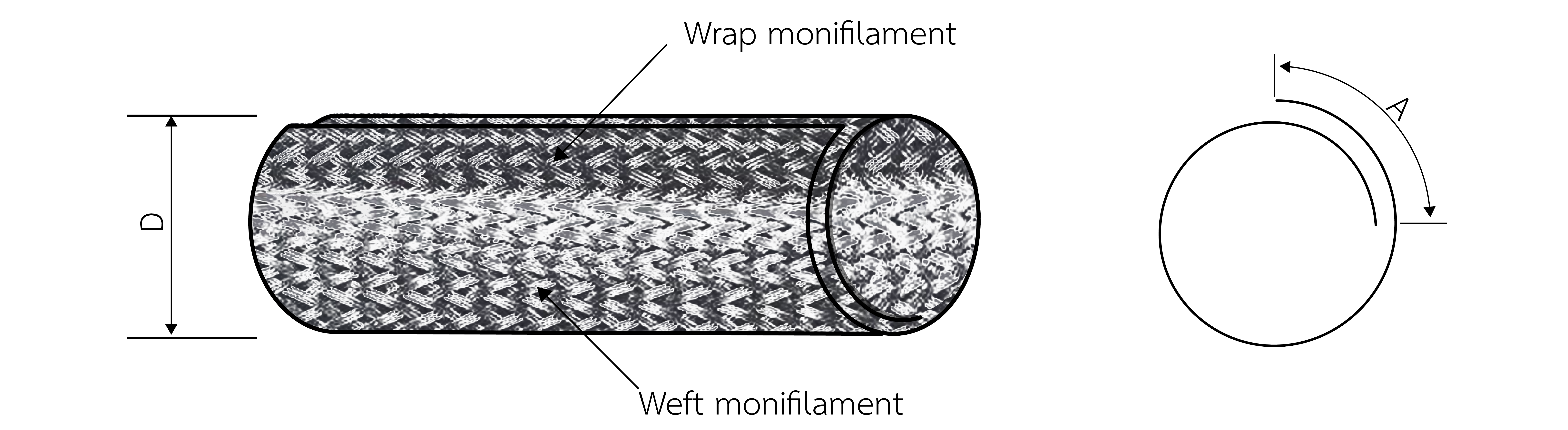

DIMENSIONS
| Part no. | ID(D) | Spread width | Wall thickness | Packaging(m/r) |
| SSCK2160-0050 | 5 | 35±5 | 1.0±0.25 | 100 |
| SSCK2160-0080 | 8 | 45±5 | 1.0±0.25 | 100 |
| SSCK2160-0100 | 10 | 55±5 | 1.0±0.25 | 100 |
| SSCK2160-0130 | 13 | 75±7 | 1.0±0.25 | 50 |
| SSCK2160-0160 | 16 | 75±7 | 1.0±0.25 | 25 |
| SSCK2160-0190 | 19 | 90±7 | 1.0±0.25 | 25 |
| SSCK2160-0250 | 25 | 115±9 | 1.0±0.25 | 25 |
| SSCK2160-0290 | 29 | 125±9 | 1.0±0.25 | 25 |
| SSCK2160-0320 | 32 | 145±9 | 1.0±0.25 | 25 |
| SSCK2160-0380 | 38 | 165±9 | 1.0±0.25 | 25 |
| SSCK2160-0450 | 45 | 195±12 | 1.0±0.25 | 25 |
