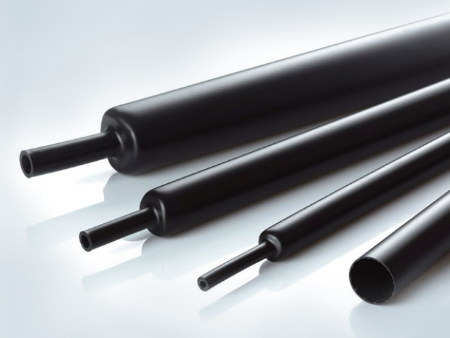

Medium Wall Adhesive-Lined Polyolefin Tubing
Non Flame Retardant Medium Wall Adhesive-Lined Cross-Linked Polyolefin Heat Shrink Tubing
Medium wall heat shrinkable tubing suitable for a variety of low voltage electrical and mechanical application, where lighter weight and greater flexibility are important.
Powered by Froala Editor
FEATURES
• Shrink ratio: 3:1
• Not flame-retardant
• Seal and protect cable splice and terminations
• Rugged mechanical protection
• Strain relief for delicate wire connections
• Resists puncture and abrasion damage
• Resists acids and alkalies
• Bonds to a wide variety of substrates
• UV resistant
• Rated voltage: 1000V
• RoHS compliant
• Not flame-retardant
• Seal and protect cable splice and terminations
• Rugged mechanical protection
• Strain relief for delicate wire connections
• Resists puncture and abrasion damage
• Resists acids and alkalies
• Bonds to a wide variety of substrates
• UV resistant
• Rated voltage: 1000V
• RoHS compliant
Powered by Froala Editor
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Polyolefin
Operating temperature: -45˚C~+110˚C
Minimum shrink temperature: 70˚C
Minimum full recovery temperature: 125˚C
Standard color: Black (Other color available upon request)
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Test result |
| Tensile strength (MPa) | ASTM D2671 | ≥10.4 |
| Elongation (%) | ASTM D2671 | ≥200 |
| Tensile strength after aging (MPa) | UL224 158˚C x168hrs | ≥8.4 |
| Elongation at break after aging (%) | UL224 158˚C x168hrs | ≥200 |
| Longitudinal shrink ratio (%) | UL 224 | ≤±10% |
| Dielectric Strength (KV/mm) | IEC 60243 | ≥20 |
| Volume resistance (Ω·cm) | IEC 60093 | ≥1x1014 |
| Water absorption | ASTM D 570 | <0.5 |
Hot melting adhesive
| Property | Test method | Test result |
| Water absorption | ASTM-D570 | <0.2% |
| Vicat softening point | ASTM-E28 | 95℃ |
| Peel strength (PE) | ASTM-D1000 | 120N/25mm |
| Peel strength (AL) | ASTM-D1000 | 80N/25mm |
Powered by Froala Editor
DIMENSIONS
| Part no. | Size (mm) | As supplied(mm) | After recovered(mm) | Standard package (m/pcs) | |||
| ID(D) | ID(d) | Out layer W.T | Adhessive thickness(w1) | Total W.T.(w) | |||
| RSM-0080 | 8.0 | ≥8.0 | ≤2.0 | 1.40±0.20 | 0.45±0.15 | 1.85±0.30 | 1.22 |
| RSM-0120 | 12.0 | ≥12.0 | ≤3.0 | 1.40±0.20 | 0.50±0.15 | 1.90±0.30 | 1.22 |
| RSM-0160 | 16.0 | ≥16.0 | ≤5.0 | 1.50±0.20 | 0.55±0.20 | 2.15±0.35 | 1.22 |
| RSM-0190 | 19.0 | ≥19.0 | ≤5.6 | 1.80±0.20 | 0.60±0.20 | 2.40±0.40 | 1.22 |
| RSM-0220 | 22.0 | ≥22.0 | ≤6.0 | 2.00±0.30 | 0.60±0.20 | 2.60±0.40 | 1.22 |
| RSM-0280 | 28.0 | ≥28.0 | ≤6.0 | 2.40±0.30 | 0.95±0.25 | 3.30±0.45 | 1.22 |
| RSM-0330 | 33.0 | ≥33.0 | ≤8.0 | 2.50±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| RSM-0400 | 40.0 | ≥40.0 | ≤12.0 | 2.40±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| RSM-0440 | 44.0 | ≥44.0 | ≤14.0 | 2.40±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| RSM-0550 | 55.0 | ≥55.0 | ≤16.0 | 2.40±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| RSM-0650 | 65.0 | ≥65.0 | ≤19.0 | 2.50±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| RSM-0750 | 75.0 | ≥75.0 | ≤22.0 | 2.90±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| RSM-0850 | 85.0 | ≥85.0 | ≤25.0 | 2.90±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| RSM-0950 | 95.0 | ≥95.0 | ≤30.0 | 3.00±0.30 | 0.80±0.25 | 3.80±0.50 | 1.22 |
| RSM-1150 | 115.0 | ≥115.0 | ≤34.0 | 3.00±0.30 | 0.80±0.25 | 3.80±0.50 | 1.22 |
| RSM-1400 | 140.0 | ≥140.0 | ≤42.0 | 3.00±0.30 | 0.80±0.25 | 3.80±0.50 | 1.22 |
| RSM-1600 | 160.0 | ≥160.0 | ≤50.0 | 3.20±0.30 | 0.80±0.25 | 4.00±0.50 | 1 |
| RSM-1800 | 180.0 | ≥180.0 | ≤65.0 | 3.80±0.30 | 0.80±0.25 | 4.60±0.50 | 1 |
| RSM-2000 | 200.0 | ≥200.0 | ≤69.0 | 3.80±0.30 | 0.80±0.25 | 4.60±0.50 | 1 |
| RSM-2350 | 235.0 | ≥235.0 | ≤69.0 | 3.80±0.30 | 0.80±0.25 | 4.60±0.50 | 1 |
| RSM-2500 | 250.0 | ≥250.0 | ≤75.0 | 4.00±0.30 | 0.80±0.25 | 4.60±0.50 | 1 |
