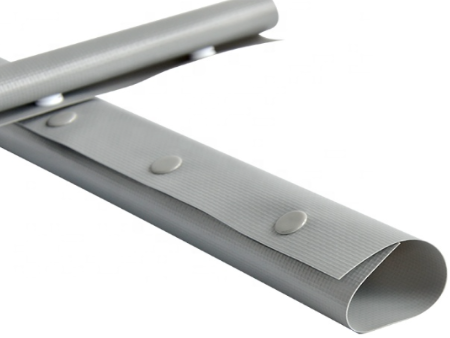

PVC Button Wrap

Model: CBWS
PVC Button Wrap

Widely used in the protection of the wires of high and low voltage power converter. often used to protect automated devices, wires protection of all kinds of mechanical equipment. The advantages of  the product: reusable and easy to dismantle.

Powered by Froala Editor

FEATURES

• Flammability UL94 V-0
• Thickness of material: T=0.35±0.03mm
• The O.D. of the face button and the bottom button: ∮10±0.2mm
• The O.D. of the male button and the female button: ∮9.5±0.2mm
• Button strength: The sound of real match is crisp

Powered by Froala Editor

TYPICAL APPLICATIONS

Material data: PVC
Working temperature: -15˚C~+85˚C
Standard color: Grey/grey

Powered by Froala Editor

Powered by Froala Editor

TECHNICAL DATA

Data not found

Powered by Froala Editor

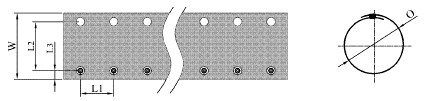

DIMENSIONS

Part no.Width(W)(mm)Max. jacketed wire OSize L1(mm)Size L3(mm)Standard length(meter)
CBWS-01260+3/-2953+7-0
10±2
50
CBWS-01980+3/-21753+7-0
10±2
50
CBWS-025100+3/-22353+7-0
10±2
50
CBWS-031120+3/-22953+7-0
10±2
50
CBWS-037140+3/-23653+7-0
10±2
50
CBWS-044160+3/-24253+7-0
10±2
50
CBWS-050180+3/-25053+7-0
10±2
50
CBWS-057202+3/-25753+7-0
10±2
50
CBWS-070242+3/-27053+7-0
10±2
50
CBWS-100335+3/-29953+7-0
10±2
50
CBWS-150495+3/-215053+7-0
10±2
50
