PET Self-Closing Braided Wrap
Request a Quote
product thumbnail

Self-Closing Wrap

Model: SSCW2160
PET Self-Closing Braided Wrap

Widely used in wear resisting and sorting of wiring harness in automotive, mechanical equipment and other industry.

Powered by Froala Editor

FEATURES

• Flame retardant
• UV resistance
• Resistant to most chemicals and solvents
• Excellent abrasion resistance

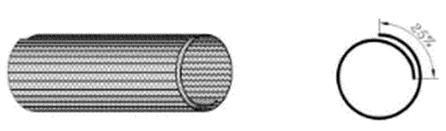

• Edge overlap of 25% and more
• Certificate: RoHS

Powered by Froala Editor

TYPICAL APPLICATIONS

Material data: Polyester
Working temperature: -40˚C~+150˚C
Melting point: 240±10˚C
Standard color: Black

Powered by Froala Editor

TECHNICAL DATA

Property
Test method
Test result
Low temperature resistance
GMW 14327(-40˚C/ 4h)
No crack and degradation
Heat aging resistance
GMW 14327(150˚C/ 504h)
No crack and degradation
Flammability
FMV SS302
Self-extinguishing
Abrasion resistance
ISO6722-1
Conform to GMW 14327 Grade 3(2000-3999 cycles)

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

DIMENSIONS

Part no.
ID(mm)
Overlap
Spread width
Packaging(m/r)
SSCW2160-0030325%
16~20
200
SSCW2160-0060
625%
30~34100
SSCW2160-0100
1025%
42~46
50
SSCW2160-0130
1325%
54~5950
SSCW2160-0160
1625%
70~7650
SSCW2160-0190
1925%
85~9025
SSCW2160-0250
2525%
110~11725

Powered by Froala Editor
