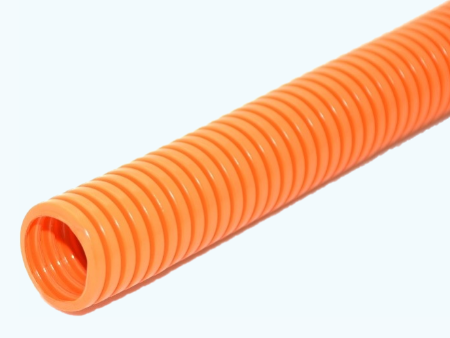

Corrugated Flexible Conduit Tube For EV

Model: LGA5001(PAJ)
PA Corrugated Flexible Conduit
Widely used in the protection of automotive high voltage wiring harness.

Powered by Froala Editor

Powered by Froala Editor

FEATURES

• Good abrasion resistance, excellent chemical resistance
• Certificate: RoHS

Powered by Froala Editor

Powered by Froala Editor

TYPICAL APPLICATIONS

Material data: Nyron
Working temperature: -40℃~+150℃
Standard color: Orange (Further colors on request)

Powered by Froala Editor

Powered by Froala Editor

TECHNICAL DATA

Property
Test method
Result
Working temperature
/-40˚C~+150˚C
Low temperature impact
QC/T29106A hammer of 300g free falls to impact the sample from 100mm,
no signs of crack and breakage after test at -40˚C for 4h
Heat aging resistance
QC/T29106No embrittlement and chalking after test at 175˚C for 240h
Flammability
GB/T 2408Class V0

Powered by Froala Editor

DIMENSIONS

SizePart no.SlitI.D.(mm)O.D.(mm)Wall thickness(T)(mm)Packaging(m/roll)
Φ7LGA5001NS-007No7.4±0.310.2±0.30.27±0.1200
LGA5001S-105Yes
Φ10LGA5001NS-010No10.7±0.414.1±0.40.27±0.1100
LGA5001S-110Yes
Φ13LGA5001NS-013No13.2±0.417.5±0.40.27±0.1100
LGA5001S-113Yes
Φ15LGA5001NS-015No15.2±0.419.5±0.40.27±0.1100
LGA5001S-115Yes
Φ17LGA5001NS-017No17.2±0.422.0±0.40.27±0.1100
LGA5001S-117Yes
Φ19LGA5001NS-019No19.5±0.423.8±0.40.27±0.1100
LGA5001S-119Yes
Φ22LGA5001NS-022No22.1±0.427.0±0.40.30±0.150
LGA5001S-122Yes
Φ25LGA5001NS-025No25.0±0.430.0±0.40.35±0.150
LGA5001S-25Yes
Φ28LGA5001NS-028No28.2±0.434.0±0.40.35±0.150
LGA5001S-128Yes
Φ32LGA5001NS-032No32.2±0.438.0±0.40.35±0.150
LGA5001S-132Yes
