Products Used In The Technology EV Industry

Nowadays, the world has turned to the development of EV technology, which inside the car consists of wires, motors and wiring harnesses. The heat shrink tube for the new wiring harness is a new type of heat shrinkable tube. that is environmentally friendly with glue The outer layer is made of high quality cross-linked polyolefin material. And the inner layer is made of hot melt adhesive that can attach nylon bellows. Softness at low temperature, oil resistance, insulating and corrosion resistance. waterproof and moisture proof, etc.

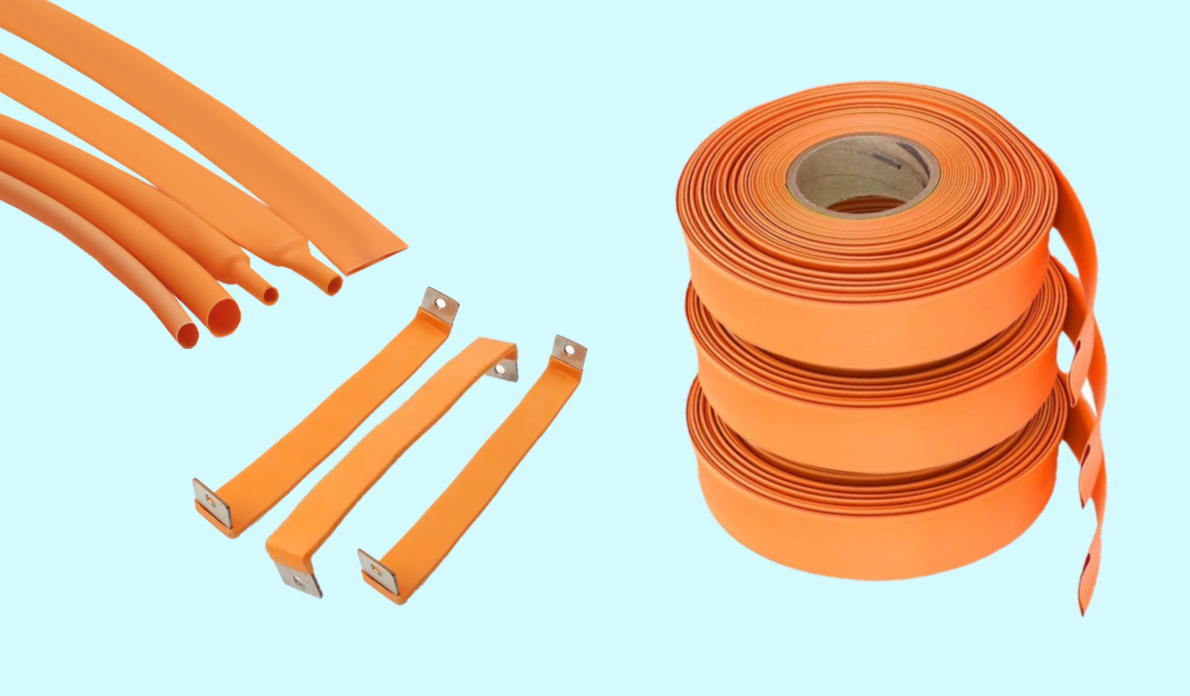

Heat Shrinkable Tube For EV Busbar

Model : BBEV

Standard color : Orange

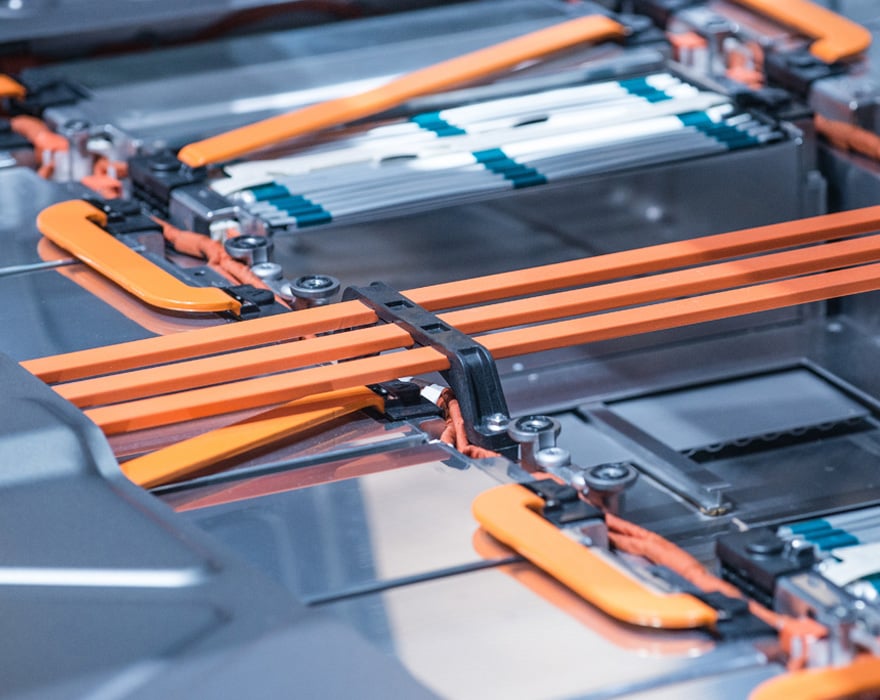

Protection For EV Busbar Heat Shrinkable Tube. Provides high resistance to tracking and arching and used to enhance the insulation properties of busbar in switchgear and substation. Isolation and Protection for EV Laminated busbar.

Features

• Shrinkage ratio: 2:1
• Corrosion resistance and flame retardant
• Reliable physical, chemical and electrical property

Typical Applications

Material data : Polyolefin
Operating temperature : -55˚C~125˚C
Minimum shrink temperature : 70˚C
Minimum fully recovery temperature : 110˚C
